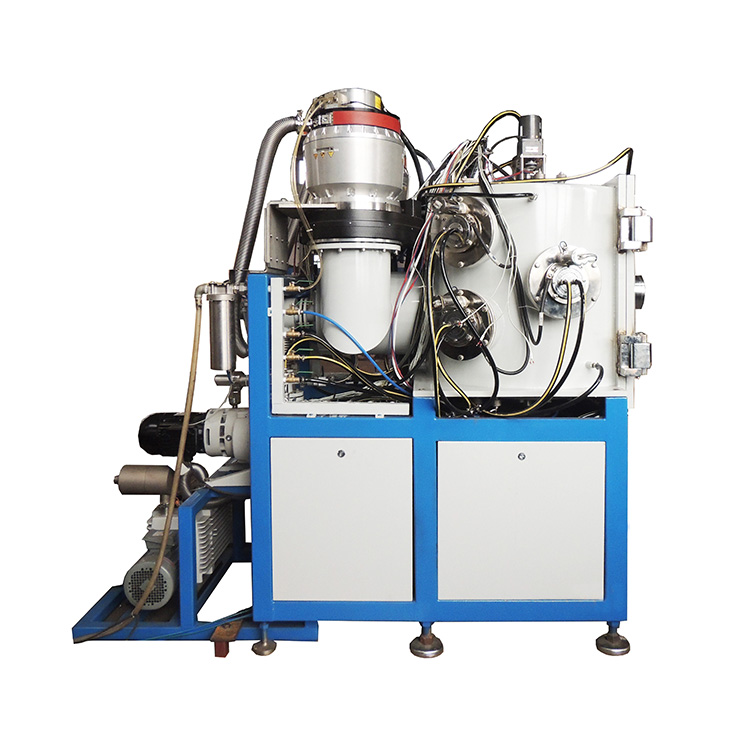

Hongfeng VAC's PVD Arc Deposition Coating Machine uses advanced arc ion plating (AIP) technology to deposit durable, hard, and high-quality metal and alloy coatings on various substrates. Whether you need decorative finishes or wear-resistant functional layers, this system delivers efficient, reliable, and repeatable results.

With a robust vacuum chamber, precise process control, and flexible configuration options, this machine is ideal for coating shops, R&D labs, and industrial manufacturers.

Applications

  • Decorative coatings – TiN, AlTiN, and other colored finishes

  • Functional coatings – Hard, wear-resistant, and corrosion-protective layers

  • Substrates – Metal parts after pretreatment

  • Industries – Tooling, automotive, aerospace, hardware, medical devices, and more

Technical Specifications

Parameter Specification
Chamber size Ø500 × H600 mm
Chamber material SUS304 stainless steel, inner surface polished
Max vacuum degree 5.0×10⁻⁴ Pa
Vacuum recovery time <8 min (to 5.0×10⁻² Pa, 20°C, empty & clean)
Heating temperature RT – 500°C (PID control)
Arc sources 4 sets of high-efficiency cathodic arc sources
Power supply 3-phase, 380V/50Hz, total power ~55 kW
Working power consumption ~30 kW/h
PLC control 15" full-touch screen (Panasonic modules)

System Configurations

Vacuum Chamber

  • Vertical single-chamber design with cooling jacket and observation port

  • Planetary rotation carousel (customizable axis quantity)

  • Water jacket and cooling channels on inner wall, door, and arc sources

  • Removable inner scaleboard for easy cleaning

Vacuum System

  • Rough pumping: 2X70 + RVP-14 mechanical pumps

  • Fine pumping: FF250/2000 turbo molecular pump (KYKY)

  • High vacuum pneumatic valves (Φ250, Φ50, Φ100)

Gas Distribution

  • Automatic gas mixing for Ar, N₂, C₂H₂, etc.

  • 4 sets of digital mass flow controllers (Made in China)

Arc Deposition & Bias Power

  • 4 arc sources with water cooling and chrome-plated copper cathodes

  • Arc power supply: specially designed for stable PVD process

  • Bias power supply (10 kW, XDD brand) – enhances coating adhesion

Control System

  • PLC with 15" full-touch screen (Panasonic)

  • Integrated controls for pumps, valves, gases, rotation, arc, bias, and safety interlocks

  • Automatic venting, low cooling water pressure alarm & shutdown

Why Choose This Machine?

✅ Proven Arc Ion Plating Technology – High deposition rate, strong adhesion, and excellent coating uniformity.
✅ Durable Construction – SUS304 chamber with polished interior and leak-free welding.
✅ User-Friendly Control – Intuitive touchscreen PLC with Panasonic modules for full process automation.
✅ Flexible & Expandable – Reserved target position for future sputtering cathode upgrade.
✅ Energy Efficient – Working power consumption only ~30 kW/h.
✅ Global Expertise – Built on design insights from Italian, Japanese, and Russian PVD machines.
✅ Complete Support – From equipment supply to consulting and technical assistance.

Machine Specifications

  • Outer dimensions (L×W×H): 2.3 × 1.6 × 1.95 m

  • Shipping: Packed in poly-wood plates with steel frame, fits in 20' container
