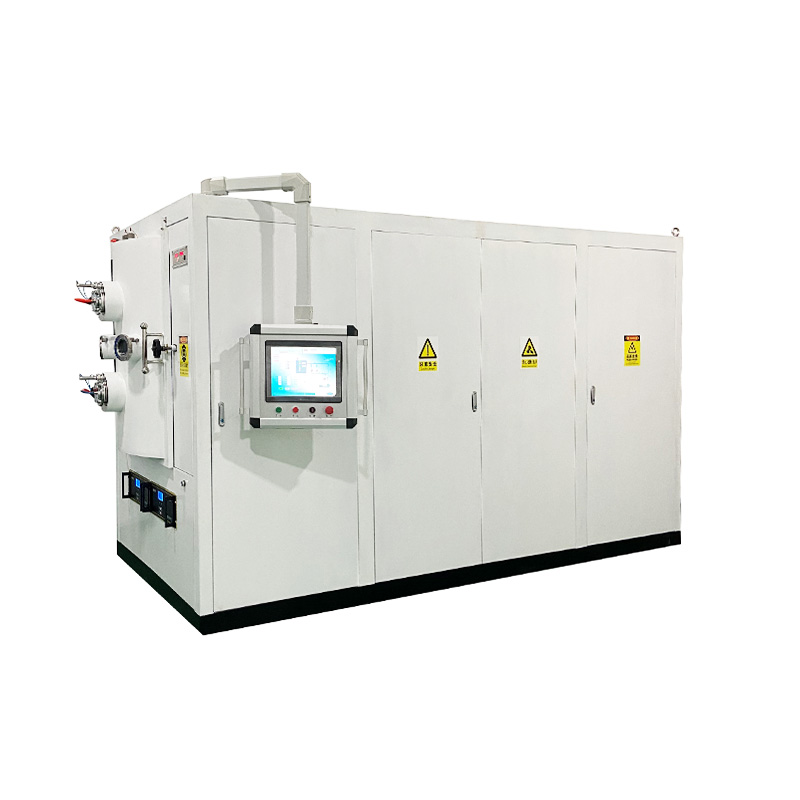

Elevate the durability and performance of your components with our state-of-the-art Vacuum Physical Vapor Deposition (PVD) Coating Machine. Specifically engineered for hard coatings, this system applies ultra-hard, wear-resistant, and low-friction thin films to a variety of substrates. Whether you are in the cutting tool, automotive, aerospace, or medical device industry, this machine delivers unparalleled adhesion, density, and microhardness.
Designed for industrial-scale production, our PVD system combines advanced arc evaporation or magnetron sputtering technology with precise process control to produce coatings such as TiN, TiAlN, CrN, AlCrN, and DLC (Diamond-Like Carbon) .
Technologies & Core Components
| Component | Specification |
|---|---|
| Vacuum Chamber | Double-walled stainless steel structure with efficient cooling system. Volume options range from 400L to 1200L for batch processing. |
| Vacuum System | Roots pump + mechanical booster pump + molecular pump (or diffusion pump) configuration. Ultimate pressure: ≤ 5×10⁻³ Pa. |
| Plasma Sources | Hybrid technology: Rectangular arc targets + cylindrical rotating arc sources + optional closed-field unbalanced magnetron sputtering. |
| Heating System | Multi-zone PID temperature control, ranging from Ambient to 600°C, ensuring uniform substrate temperature. |
| Gas Control | Mass flow controllers (MFCs) for Ar, N₂, C₂H₂, and O₂ with high-precision feedback control. |
| Automation | Fully automated PLC (Siemens) with HMI touchscreen. Remote monitoring and data logging capabilities (Industry 4.0 ready). |
This machine is optimized for depositing functional hard coatings that significantly extend tool life and component reliability.
-
Cutting Tools: End mills, drills, inserts, and taps.
-
Molds & Dies: Injection molds, stamping dies, extrusion screws.
-
Aerospace Components: Turbine blades, landing gear parts.
-
Automotive: Piston rings, valve train components, fuel injectors.
-
Medical Instruments: Surgical drills, scalpels, implants.
1. Superior Coating Adhesion
Utilizing high-voltage pulsed bias technology, the machine generates high-density plasma etching to remove surface oxides and contaminants immediately before deposition, ensuring a metallurgical bond between the coating and the substrate.
2. Uniform Hardness & Thickness
Our proprietary rotation mechanism (3-fold or planetary) guarantees excellent uniformity across complex geometries. Achieve nanohardness up to 35-45 GPa (depending on coating recipe) with a uniformity tolerance of ≤ ±5%.
3. High Deposition Rate
Optimized magnetic field configurations allow for a higher ionization rate, significantly reducing process cycle times (typical cycle: 3–6 hours depending on coating thickness) while maintaining consistent quality.
4. Eco-Friendly Process
Unlike electroplating (hard chrome), the PVD process is a dry, environmentally friendly technology. It produces zero chemical waste, no toxic wastewater, and meets strict global environmental compliance standards.
To meet diverse R&D or production requirements, we offer:
-
HiPIMS (High Power Impulse Magnetron Sputtering): For ultra-dense, smooth coatings.
-
Ion Source: For advanced substrate pre-treatment.
-
Load-Lock System: For high-throughput continuous production.
-
Custom Chamber Sizes: Tailored to your specific part dimensions.
-
Turnkey Solutions: We don’t just sell machines; we provide complete coating recipes, process training, and on-site installation.
-
Global Support: 24/7 technical support with a global network of service engineers.
-
Reliability: Built with industrial-grade components (German pumps, Siemens automation) to ensure 24/7 continuous operation with minimal downtime.
Request a Quote
Ready to revolutionize your surface engineering capabilities?
Contact Hongfeng VAC to discuss your specific coating requirements. We offer customized solutions based on your substrate materials, desired coating hardness, and production volume.
