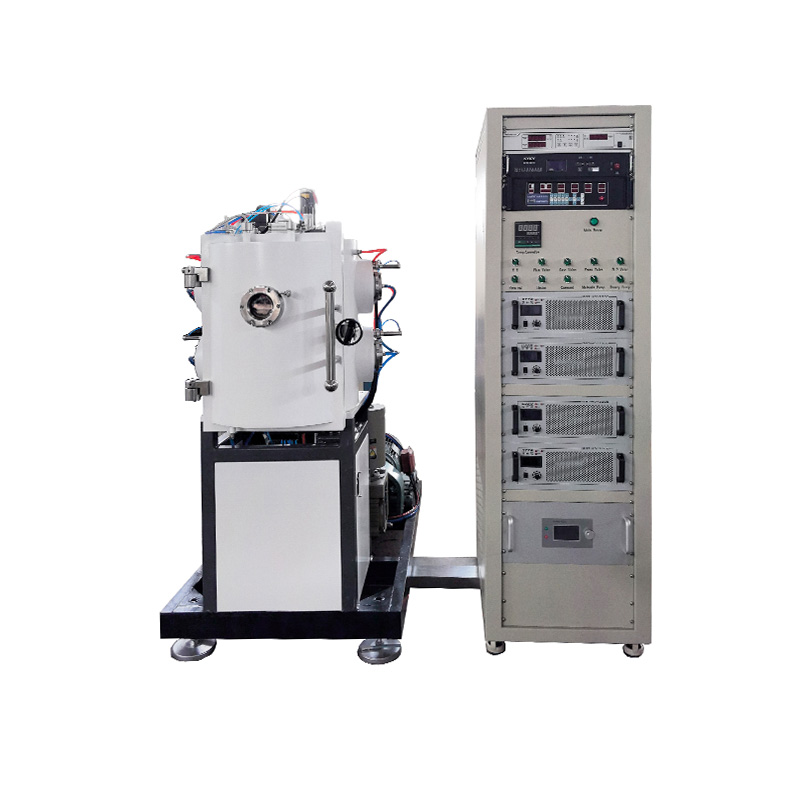

Hongfeng VAC's Multi-Arc Ion Plating (MAIP) Machine is a state-of-the-art Physical Vapor Deposition (PVD) system, specifically engineered for the high-quality decorative coating of glass substrates. Utilizing advanced cathodic arc evaporation technology, this system is optimized to deposit a variety of wear-resistant and vividly colored coatings, with a specialty in achieving uniform and brilliant golden finishes on glass bottles, perfume containers, and crystalware .

This model integrates a high-vacuum chamber with an advanced arc power supply and a robust rotary fixturing system, ensuring that every glass bottle—from cylindrical flasks to geometrically complex decanters—receives a consistent, high-gloss metallic layer without the environmental hazards of traditional wet electroplating.

Applications

Luxury Packaging: Deposition of imitation gold (TiN), champagne gold, and rose gold on perfume bottle caps and shoulders.
Tableware & Decor: Coating glass goblets, decanters, and ornaments with semi-transparent or opaque metallic finishes (Gold, Silver, Amber, Blue, and Rainbow effects) .
Crystal & LED Accessories: Achieving mirror-like finishes on crystal pendants and glass lamp covers to enhance light refraction.

Features & Technology

 Advanced Cathodic Arc Source
The system employs a patented cathodic arc power supply designed to minimize macro-particles (droplets), resulting in an exceptionally smooth surface finish. When utilizing a Titanium (Ti) target in a Nitrogen (N₂) atmosphere, the system deposits a hard, golden Titanium Nitride (TiN) film known for its high adhesion and brilliant luster. By adjusting reactive gases and targets (e.g., Zirconium), the system can produce a spectrum from pale yellow to deep amber.

 Superior Adhesion & Durability
Unlike simple evaporation coating, the high-energy ions produced in the arc process embed into the glass surface. This ensures the golden coating is highly resistant to scratching, chemical corrosion, and oxidation, passing stringent rub tests required for luxury goods.

 High-Volume Production Design

  • Chamber Configuration: Available in sizes ranging from φ1600mm to large-scale industrial models, accommodating thousands of small bottles per batch.

  • Planetary Rotation System: A multi-layer, rotating workpiece holder ensures 3D uniformity, preventing color variance on curved bottle surfaces.

  • Dual-Mode Capability (Optional): For bottles requiring internal metallization (e.g., for a mirror effect) and external golden coatings, a combined system with resistance evaporation can be integrated.

Fully automated PLC with a touch screen interface manages the entire cycle: vacuum pumping, glow discharge cleaning (to remove surface contaminants), heating, deposition, and cooling. This ensures repeatability from batch to batch.

Why Choose This System for Glass?

  • Eco-Friendly: Replaces toxic cyanide-based electroplating with a clean, dry process. No effluent treatment required.
  • Cost-Effective: Low power consumption design reduces operational costs by up to 30% compared to conventional systems.
  • Versatility: Capable of coating not only glass but also ceramics and metals, allowing diversification in production.

Support and Services

We provide comprehensive turn-key solutions including:

  • Installation and commissioning.
  • On-site operator training (7-10 days) .
  • Process recipe development assistance to achieve specific color tones (Pantone matching available).

Contact Us
For inquiries regarding customization, pricing, or sample processing, please contact our sales engineering team.
