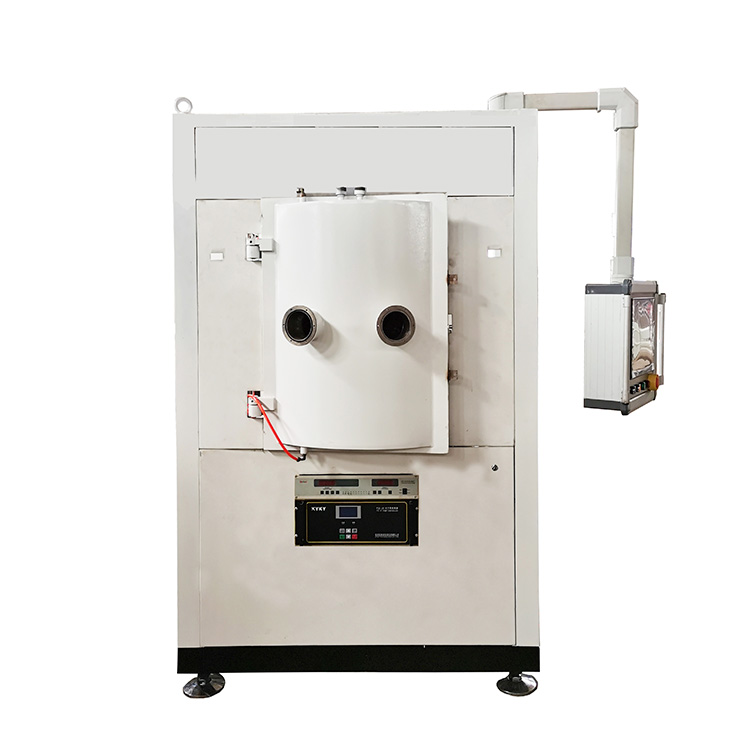

Hongfeng DMFA series is a high-performance Vacuum PVD Coating Machine specifically designed for decorative applications on faucets, sanitary ware, and hardware components. Combining Arc Deposition and Magnetron Sputtering technologies in a single vertical chamber, this system offers superior film adhesion, vibrant metallic finishes (such as gold, rose gold, black, and chrome), and high production efficiency.
Engineered for industrial-scale operation, the DMFA-1400 delivers reliable performance with rapid vacuum recovery, uniform coating distribution, and user-friendly PLC automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Chamber Size | Φ1400mm × H1400mm (Vertical, Single Door) |
| Substrates | Metal, Ceramic, Glass (Pre-treatment required) |
| Ultimate Vacuum | 5.0×10⁻⁴ Pa |
| Working Vacuum | 5.0×10⁻² Pa |
| Vacuum Recovery Time | < 8 min (Atmosphere to 8.0×10⁻² Pa, clean & empty) |
| Cycle Time | 20 – 30 minutes (Depending on coating specifications) |
| Total Power Supply | Approx. 220 kW (3-phase, 380V/50Hz) |
| Working Power Consumption | Approx. 110 kW/h |
| Cooling Water | Closed-loop chiller, 2 Ton/hr, 2.0 kg/cm², 20±5°C |
| Compressed Air | 0.5 – 0.6 MPa |
Technology & Process
1. Arc Deposition (Arc Ion Plating)High-current arc discharge evaporates metal targets. The metal ions react with nitrogen gas under a negative bias voltage to form hard, dense metal nitride films (e.g., TiN, CrN). This process ensures excellent hardness and wear resistance.
2. Magnetron SputteringUtilizes unbalanced magnetic fields to generate Argon ions that sputter metal atoms onto the substrate. This technology is ideal for producing smooth, solid metal films with precise thickness control, perfect for achieving high-purity decorative layers.
Configuration| Component | Details |
|---|---|
| Vacuum System | Diffusion Pump (KT-800) + Roots Pump (ZJP-1200) + Mechanical Pump (2X70 & H-150) |
| Plasma Sources | 16 Sets of Arc Deposition Sources with Power Supplies |
| Sputtering Source | Mid-Frequency (MF) Magnetron Sputtering Cathode with 40kW Power Supply |
| Bias Power Supply | 30kW, Constant Voltage/Current mode with fast arc extinguishing (<100ms) |
| Control System | PLC with HMI touch screen; automatic phase protection, pumping sequence, gas flow, and alarm interlocks. |
| Gas Flow Control | Digital Mass Flow Controllers (MFC) for N₂, Ar, and C₂H₂; ensures even gas distribution. |
| Fixture System | Self-rotating carousel (Jigs quoted separately based on substrate specifications). |
| Chamber Construction | SUS304 Stainless Steel with removable liners for easy cleaning; water jacket cooling. |
-
Floor Space: 5000mm (W) × 4200mm (L) × 3200mm (H)
-
Cooling Water: 2 Ton/hr, 2.0 kg/cm², 20±5°C (Closed-loop chiller recommended)
-
Power: 3-phase, 4 wires, 380V/50Hz
The system supports a wide range of decorative coatings, including but not limited to:
-
Gold (TiN)
-
Rose Gold (TiCN)
-
Black (CrC/CrN)
-
Chrome (Cr)
-
Zirconium-based films
-
Proven Expertise: Manufacturing PVD equipment since 2008, integrating design principles from Italian, Japanese, and Russian technology.
-
Comprehensive Solutions: From coating equipment and peripherals to technical consulting and after-sales support.
-
Quality Assurance: Each system undergoes rigorous testing including vacuum leak tests, coating unit tests, hardness tests, and sample validation.
-
Robust Construction: Built with durable materials and safety features such as low cooling water pressure alarms and automatic shutdown.
For more information, technical consultation, or to request a sample coating test, please contact Hongfeng VAC.
