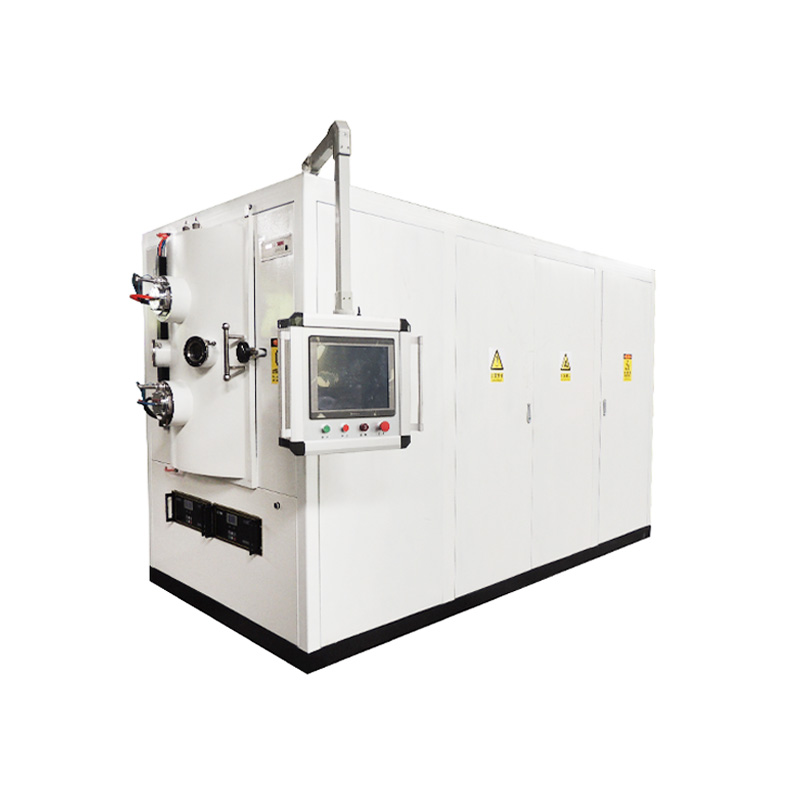

This state-of-the-art Multi-Arc Ion PVD Plating Machine is specifically engineered to apply luxurious, durable metallic coatings—with a special focus on golden finishes—to heat-sensitive substrates such as glass, ceramics, and metals. Ideal for coating glass vases, coffee pots, drinkware, and decorative hardware, this system utilizes Physical Vapor Deposition (PVD) technology to transform ordinary products into premium, high-value items.
Unlike traditional water plating or evaporation methods, this machine employs cathodic arc deposition to create films that are harder, more corrosion-resistant, and environmentally friendly.
Key Features & Advantages
1. Superior Adhesion on Glass
Achieve a mirror-like gold finish that won't peel or fade. The multi-arc ion source ensures high-energy ions penetrate the glass surface, resulting in Grade 1 adhesion strength and a density of ≥99.9%.
2. Low-Temperature Process
Designed with safety for glass in mind. The optimized bias control and arc distribution maintain a coating temperature ≤200°C, preventing thermal stress and deformation of thin-walled glass vases or double-wall coffee cups.
3. True Gold & Rose Gold Colors
Achieve consistent, vibrant colors including Golden (TiN), Rose Gold (ZrN/TiCN), Champagne, and Rainbow gradients. The multi-gas control system (MFC) allows for precise regulation of Nitrogen and Acetylene to duplicate luxury aesthetics batch after batch.
4. High Efficiency & Uniformity
Equipped with a planetary rotating sample stage and strategically arranged arc targets, this machine ensures 3D coverage on complex shapes. It features a fast cycle time of 15 to 50 minutes per batch with a coating uniformity of ≤±5%.
5. Eco-Friendly Operation
Zero toxic emissions or wastewater. This PVD process is a green alternative to electroplating, meeting strict international environmental standards.
Technical Specifications
| Parameter | Specification | Application Benefit |
|---|---|---|
| Machine Type | Multi-Arc Ion PVD (Cathodic Arc Deposition) | Hard, dense decorative film |
| Substrate Compatibility | Glass, Metal (SS, Brass), Ceramics, Crystal | Versatile production for vases & tableware |
| Typical Coatings | TiN (Gold), ZrN (Shiny Gold), TiCN (Rose/Black), CrN | Wide decorative color range |
| Ultimate Vacuum | 5.0 × 10⁻⁴ Pa | High purity film with zero oxidation |
| Chamber Size | Customizable (e.g., D700H700 to D2000H2400) | Suitable for small crafts to bulk industrial runs |
| Coating Uniformity | ≤ ±5% | Consistent color across all products |
| Power Supply | AC 380V, 50Hz (Customizable) | Industrial grade stability |
| Control System | PLC + HMI Touchscreen (Fully Automatic) | One-click operation, low skill requirement |
Applications Showcase
- Glassware: Perfume bottles, wine glasses, vases, decorative ornaments.

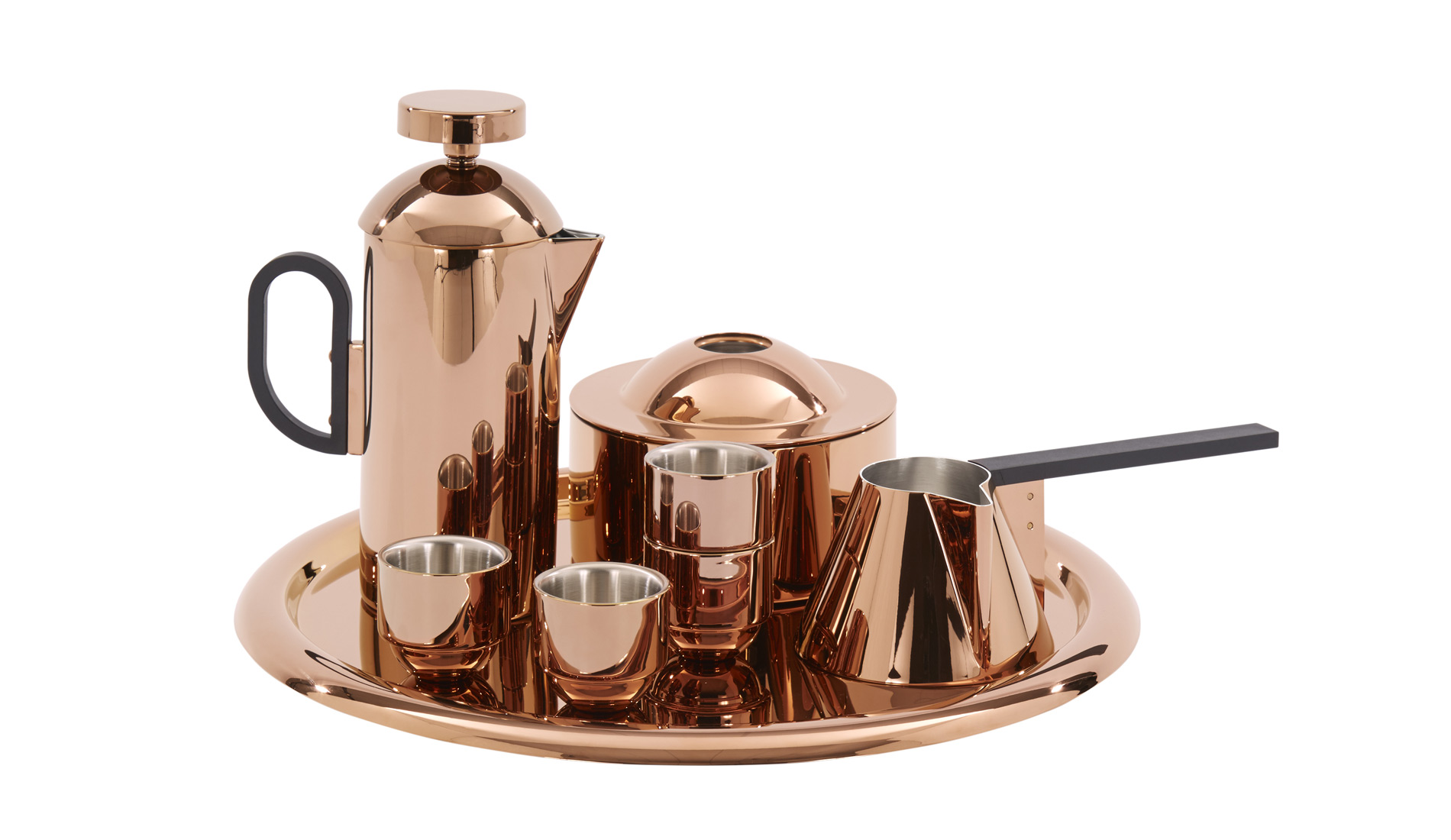

- Tableware: Stainless steel cutlery, ceramic plates with gold trim, coffee pots.
- Home Hardware: Faucets, door handles, light fixtures with luxury gold finishes.
- Jewelry & Crafts: Bangles, pendants, and crystal gifts.
Why Choose This System?
- Precision for Glass: Specifically calibrated to handle non-conductive and fragile materials without arcing damage.
- Commercial Viability: Fast pump-down speeds and high deposition rates reduce production costs.
- Comprehensive Support: We provide free installation, operator training, and 1-year warranty. Our engineers are available for overseas after-sales service and process consultation.
