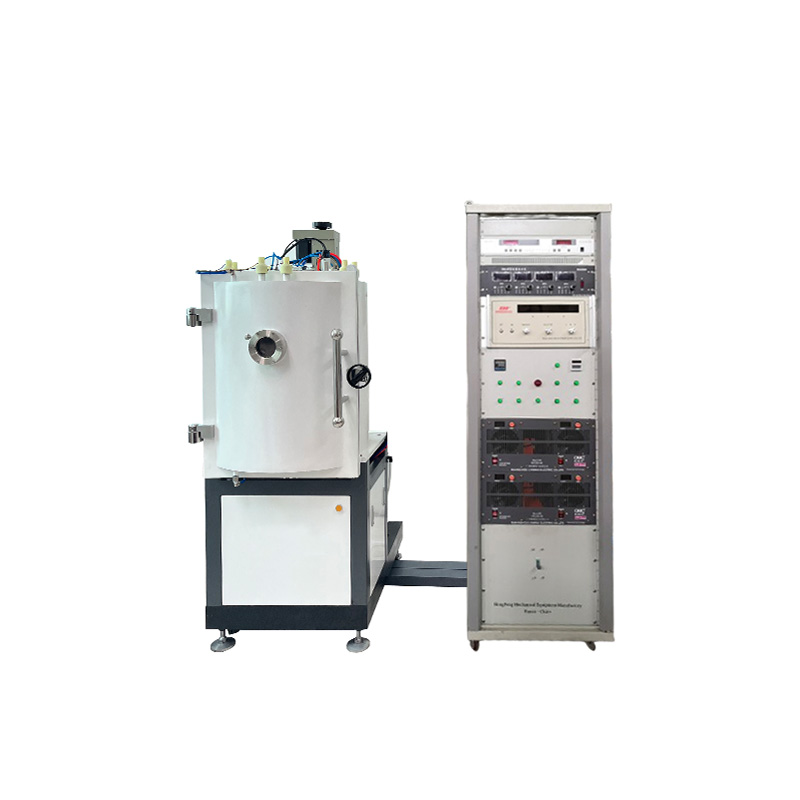

Compact Magnetron Sputter Coater for Laboratory - High Precision Thin-Film Deposition Solution

Introducing our Compact Magnetron Sputter Coater, a cutting-edge laboratory-grade thin-film deposition system designed to deliver exceptional performance in a space-saving, user-friendly design. Engineered specifically for academic research, material science laboratories, and R&D facilities, this compact sputter coater combines advanced magnetron sputtering technology with intuitive operation, making it the ideal choice for precise, repeatable thin-film coating applications—without compromising on quality or versatility.

Why Choose Our Compact Magnetron Sputter Coater?
In laboratory environments where space is at a premium and precision is non-negotiable, our compact sputter coater stands out as a game-changer. Unlike bulky industrial systems, it features a desktop-sized design that fits seamlessly into standard lab workstations, while still delivering the high-quality deposition results required for critical research. Whether you’re preparing samples for SEM/TEM imaging, developing functional coatings, or exploring nanomaterial applications, this system empowers you to achieve consistent, contamination-free thin films with minimal effort.

Features
  • Space-Saving Compact Design: With a compact footprint (250×360×306 mm) and lightweight construction (only 18 kg), this sputter coater fits perfectly on laboratory benches, saving valuable space for other equipment. Its sleek, durable design ensures long-term reliability in busy lab settings.
  • High Precision & Uniform Coating: Leveraging advanced magnetron sputtering technology, the system produces dense, highly adherent thin films with exceptional uniformity—critical for SEM sample preparation, optical coatings, and electronic material research. The magnetic field constrains plasma flow, increasing sputtering efficiency and ensuring consistent film thickness across the entire substrate surface.
  • User-Friendly Touch Panel Control: Equipped with an intuitive touch panel, the system allows for easy programming of sputtering time, power, and pressure settings. Even researchers with minimal experience can operate it effortlessly, with programmable processes that ensure repeatable results for every experiment.
  • Low Heat & Sample Protection: The system generates minimal heat during operation, preventing plasma damage to heat-sensitive substrates—making it ideal for coating delicate samples such as polymers, biological materials, and thin wafers. This low-heat design also extends the lifespan of sputtering targets and chamber components.
  • Versatile Target Compatibility: Compatible with 2-inch (50mm) sputtering targets of various materials, including gold (Au), platinum (Pt), palladium (Pd), and silver (Ag) (4N purity options available). A pre-installed 2-inch gold target is included for immediate use, with optional targets available for custom applications.
  • Efficient Vacuum Performance: Achieves a vacuum limit of <2 Pa quickly with a compatible vacuum pump (not included), ensuring a clean, contamination-free deposition environment. The quartz glass chamber provides clear visibility of the sputtering process, allowing for real-time monitoring of sample coating.
  • Cost-Effective & Low Maintenance: Designed for laboratory budgets, this compact system eliminates the need for expensive industrial-scale equipment while maintaining professional-grade performance. Its air-cooled design reduces maintenance requirements, and the hinged chamber cover allows for easy target replacement and cleaning.

Technical Specifications

Parameter
Specification
Sputtering Source
DC, MF or RF
Chamber Size
Small size(customized
Compatible Target Size
ø 70mm or planar
Vacuum Performance
Ultimate vacuum 5.0X10-4Pa
Sputtering Time
Programmable and adjustable
Power Supply
3phases 4 wires 380V, 50Hz
Cooling Method
Water Cooled
Dimensions (L×W×H)
1250 × 860 × 1200 mm
Weight
Approx. 1010 kg
Warranty
1-Year Limited Warranty with Lifetime Product Support

Applications
Our Compact Magnetron Sputter Coater is engineered to support a wide range of laboratory applications, making it a versatile tool for researchers and scientists across disciplines:
  • SEM/TEM Sample Preparation: Coating non-conductive samples with gold (Au) or platinum (Pt) to prevent charging and improve imaging quality—essential for high-resolution microscopy.
  • Thin-Film Research: Developing functional coatings for optics, electronics, sensors, and nanotechnology applications, including conductive films, alloy films, and dielectric films.
  • Surface Engineering: Improving the hardness, wear resistance, or conductivity of materials for material science research and industrial R&D.
  • Academic & Educational Research: Ideal for university laboratories and teaching environments, providing students and researchers with hands-on experience in physical vapor deposition (PVD) technology.
Why Our Laboratory Sputter Coater Stands Out?
In a market flooded with bulky, complex sputtering systems, our compact model is designed with the laboratory user in mind. It balances advanced technology with simplicity, ensuring that you can focus on your research—not on operating complicated equipment. Unlike traditional systems, it requires no specialized training, features a quick setup process, and delivers consistent results every time. Plus, our lifetime product support ensures that you’ll have access to expert assistance whenever you need it.

We understand that every laboratory has unique needs. That’s why we offer flexible customization options, including custom target materials, voltage configurations, and additional accessories (such as vacuum pumps and film thickness monitors). The vacuum pump is not included but can be ordered at an additional cost. Contact our team today to discuss your specific requirements and get a tailored quote.
Elevate your laboratory research with a compact, high-performance magnetron sputter coater that delivers professional results in a space-saving design. Whether you’re preparing samples for microscopy, developing new materials, or teaching advanced PVD techniques, our system is the reliable, cost-effective solution you need.

Contact Us Now to learn more about how our Compact Magnetron Sputter Coater can transform your laboratory workflow!
