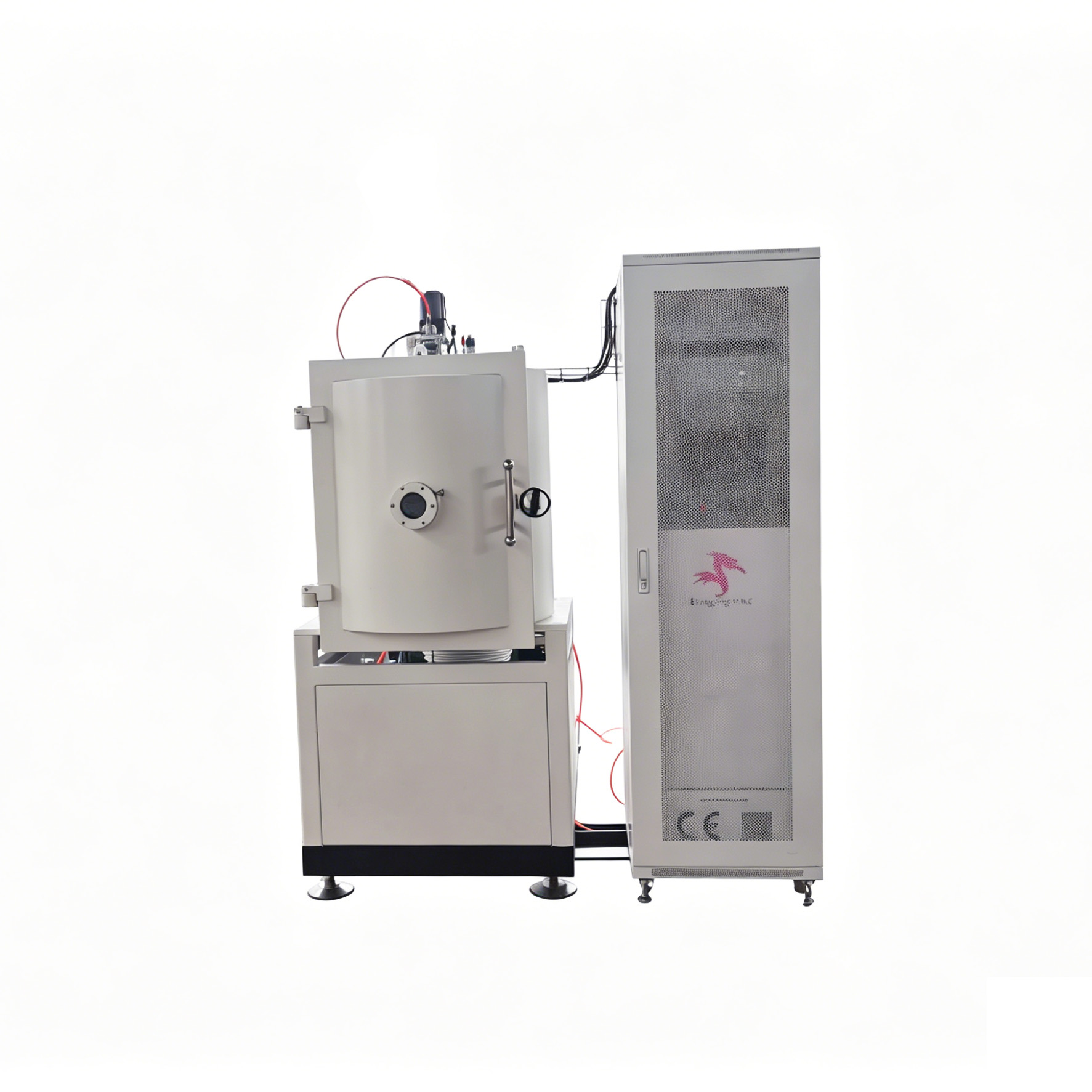

Our DC Magnetron Sputtering System is a robust, industrial-grade vacuum coating platform engineered for high-precision, repeatable deposition of metallic, conductive, and functional thin films. Built for both R&D labs and mid-to-large-scale production lines, it delivers uniform, dense, and adherent coatings for applications spanning semiconductors, optics, automotive components, and consumer electronics.
Designed for maximum uptime and process stability, the system combines advanced vacuum technology, reliable DC power delivery, and intuitive automation to meet the most demanding thin-film requirements.
Features
✅ Superior Deposition Performance
- Uniform thin-film coverage across large substrates, with thickness control down to nanometer levels.
- High target utilization efficiency, reducing material waste and lowering operational costs.
- Compatible with a wide range of conductive targets: Ti, Al, Cu, Cr, Ni, Au, Ag, and more.
✅ High-Vacuum Stability & Control
- High-grade stainless steel vacuum chamber with leak-tight sealing, achieving ultimate vacuum levels up to 1×10⁻⁶ mbar.
- Precision gas flow control (Ar, N₂, O₂ optional) via mass flow controllers, ensuring consistent process conditions.
- Integrated vacuum gauges and interlock systems for real-time pressure monitoring and safety protection.
✅ Flexible & Scalable Design
- Configurable magnetron targets (1–4 cathodes) for single-layer or multi-layer deposition, with optional co-sputtering capability.
- Substrate rotation and heating (up to 400°C) options to enhance film uniformity and adhesion.
- Modular architecture supports future upgrades, such as pulsed DC power or RF sputtering integration.
✅ User-Friendly Automation & Safety
- PLC-based control system with a touchscreen HMI, enabling recipe storage, one-touch operation, and process data logging.
- Full safety interlocks (door lock, over-temperature, over-pressure, power failure protection) to meet industrial safety standards.
- Low-maintenance design with easy-access chamber doors and tool-free target replacement, minimizing downtime.
✅ Durable Industrial Build
- Heavy-duty structural frame and corrosion-resistant components for long-term 24/7 operation.
- High-efficiency cooling system for magnetrons and power supplies, ensuring stable performance under continuous load.
- Semiconductor & Electronics: Conductive seed layers, contact metallization, and barrier coatings for wafers and PCBs.
- Optical Coatings: Reflective metal layers, anti-reflective coatings, and decorative films for glass, lenses, and displays.
- Automotive & Aerospace: Wear-resistant, corrosion-resistant coatings for engine components and aerospace parts.
- Consumer Goods: Decorative and functional coatings for hardware, kitchenware, and electronic enclosures.
- Research & Development: Lab-scale thin-film deposition for material science, nanotechnology, and advanced coating research.
Technical Specifications
| Parameter | Specification |
|---|---|
| Chamber Material | SUS304 Stainless Steel or Carbon Steel |
| Ultimate Vacuum | ≤ 5.0 × 10-4 Pa |
| Working Pressure | 1 × 10⁻³ ~ 1 × 10⁻¹ mbar |
| DC Power Supply | 10kW (per cathode, customizable) |
| Magnetron Target Size | D70mm in diameter or planar magnetron cathodes |
| Substrate Size | Up to 400 × 400 mm (customizable) |
| Substrate Heating | Ambient to 400°C (optional) |
| Gas Control | MFC-controlled Ar/N₂/O₂ (up to 4 channels) |
| Control System | PLC + Touchscreen HMI, recipe management |
| Safety Features | Door interlock, over-temperature/over-pressure protection, emergency stop |
Why Choose Our DC Magnetron Sputtering System?
- Proven Reliability: Built with industrial-grade components and tested for continuous production, ensuring low failure rates and long service life.
- Customization Support: We tailor the system to your specific process needs, from chamber size to target configuration and automation level.
- Full After-Sales Service: Global technical support, on-site installation & training, and spare parts supply to keep your production running smoothly.
- Cost-Effective Ownership: High efficiency, low maintenance, and minimal material waste translate to a low total cost of ownership (TCO).
