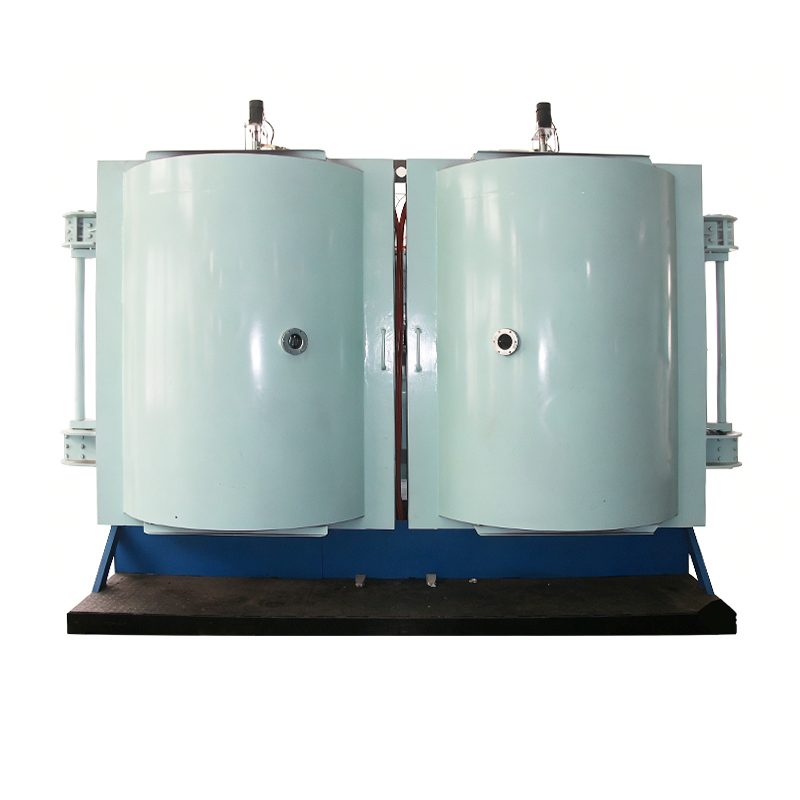

Our Dual-Chamber DC Magnetron Sputtering System is a state-of-the-art physical vapor deposition (PVD) solution designed specifically for metallizing plastic substrates. With two independent vacuum chambers, it delivers high throughput, exceptional coating uniformity, and the flexibility to coat a wide range of metals onto ABS, PP, PC, PVC, and other engineering plastics. Ideal for applications requiring food-grade safety – such as disposable cutlery, tableware, and food packaging – this system combines productivity with uncompromised hygiene standards.
Features
Dual-Chamber Design
Two separate vacuum chambers allow simultaneous or alternating coating processes. While one chamber is in production, the other can be loaded/unloaded, minimizing downtime and doubling output compared to single-chamber systems.
DC Magnetron Sputtering Technology
High-energy metal ions are ejected from a target cathode and deposited onto plastic surfaces at low temperatures.
Excellent adhesion without damaging heat-sensitive plastics (PP, ABS, PVC, PC).
Smooth, pinhole-free metallic films with controllable thickness.
Wide Metal Compatibility
Sputter any conductive metal or alloy:
Aluminum (brilliant silver finish)
Copper (decorative & antimicrobial)
Chromium (hard, scratch-resistant)
Stainless steel (food-contact approved)
Titanium (biocompatible, wear-resistant)
Custom alloys available upon request.
Food-Grade Compliance
The coating process is entirely chemical-free and operates in a high-vacuum environment. No toxic residues, no leaching – meets FDA, EU 10/2011, and GB 4806 standards for direct food contact. Perfect for disposable spoons, forks, knives, plates, bowls, and lunch boxes.
Low-Temperature Process
Process temperature below 80°C (176°F) ensures zero deformation, discoloration, or degradation of plastic substrates – even for thin-walled items.
Eco-Friendly & Clean
Zero wastewater, zero VOC emissions, and no hazardous chemical baths. The closed-loop sputtering process consumes only electricity and argon gas. Target materials are fully utilized with minimal waste.
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Number of chambers | 2 (independent operation) |
| Chamber size | Customizable (e.g., Ø1200×1400 mm per chamber) |
| Substrate material | ABS, PP, PC, PVC, PE, PET, nylon, etc. |
| Deposition metals | Al, Cu, Cr, SS, Ti, Ni, Ag, Au, alloys |
| Max coating thickness | Up to 5 µm (typical 0.1–1 µm) |
| Uniformity | ±5% across 500×500 mm area |
| Ultimate pressure | 5×10⁻⁴ Pa |
| Working pressure | 0.1–1 Pa |
| Sputtering power | 0–40 kW DC per cathode (adjustable) |
| Cycle time | 20–60 min per batch (depending on thickness) |
| Production capacity | 500–2000 pcs/batch (e.g., spoons) |
| Power supply | 380V, 3-phase, 50/60 Hz, 65 kVA |
| Cooling | Closed-loop water chiller (optional) |
We offer custom chamber sizes, multi-target carrousels, and reactive sputtering (for oxides/nitrides).
Applications
| Industry | Examples |
|---|---|
| Food service | Disposable cutlery (forks, knives, spoons), plates, trays, straws – with metallic finish or barrier layer |
| Cosmetic packaging | High-gloss mirror finish on PP/ABS caps, bottles, compacts |
| Automotive interior | Chrome-like trim on plastic vents, handles, emblems |
| Electronic devices | EMI shielding, decorative bezels, keys on PC/ABS housings |
| Medical plasticware | Antimicrobial copper-coated specimen containers, instrument trays |
| Toys & stationery | Metallic pens, figurines, game pieces without toxic paints |
Why Choose Our Dual-Chamber Sputtering System?
-
50–80% higher productivity over single-chamber designs – lower cost per piece.
-
Operator-friendly HMI with recipe storage for different metals/plastics.
-
Easy maintenance – modular target assemblies and quick-release chamber doors.
-
Global support – installation, training, and spare parts delivered worldwide.
Marketing Highlights for Your Production
Sold directly to manufacturers, OEMs, and plastic processors.
Boost product value – A metallic look or functional coating (antibacterial, barrier) can increase selling price by 30–200%.
Comply with strict food regulations – Provide test reports for food-contact coatings.
Upgrade from electroplating – No toxic hexavalent chromium, no wastewater, no substrate damage.
Ready to bring durable, brilliant, and safe metal coatings to your plastic products? Contact our engineering team today with your substrate type, target metal, and desired output – we’ll provide a tailored solution.
