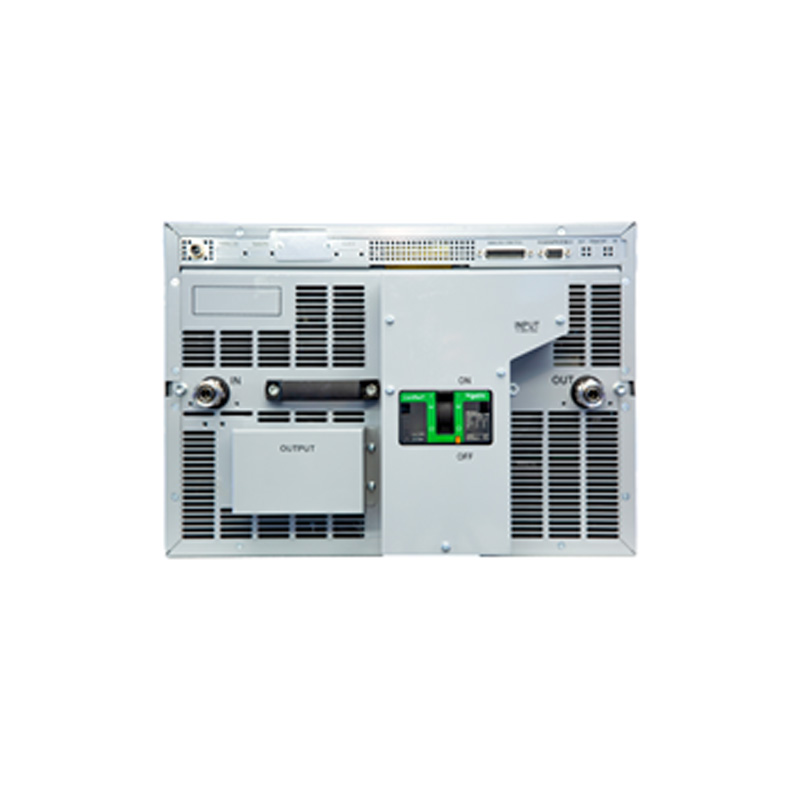

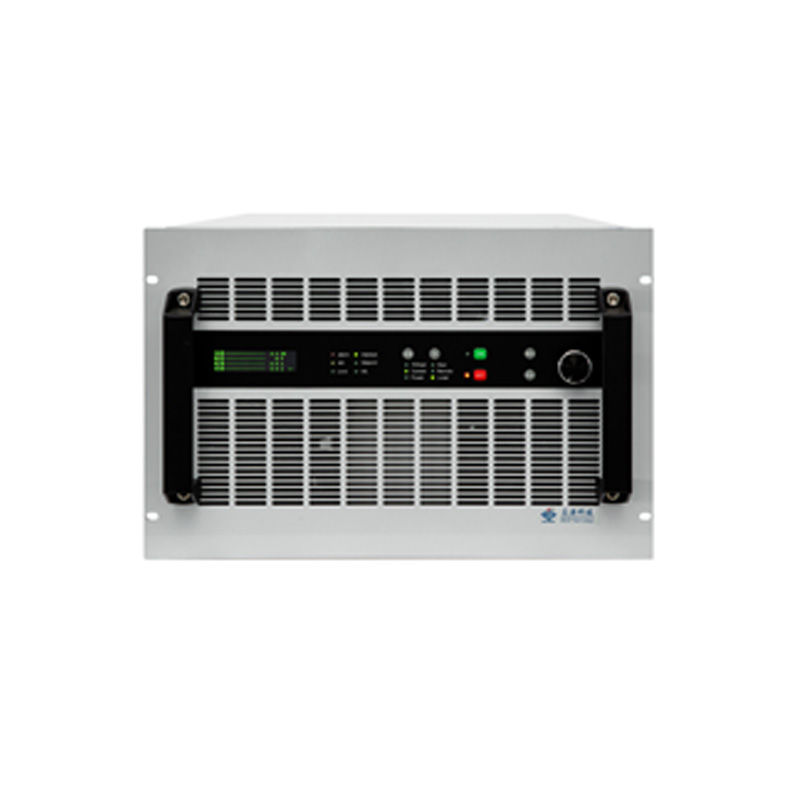

Plasma Generator Power Supply for Pulse Plasma Nitriding Unit
Applications
It can be applied to multi-arc, magnetic control, plasma enhancement, nitridation and chemical vapor deposition, and is mainly used for glow cleaning of workpiece surface, material nitridation, ion bombardment before coating and ion acceleration during deposition.
Its main circuit topology uses PFC + SiC full-bridge architecture, combined with DSP + FPGA digital control technology.
It has a built-in arc suppression Arc time setting, matches different processes and substrates, records the number of arcs and counts inquiries.
It can detect the change of v-Arc & I-Arc, cut off the output quickly, and start the built-in patented technology to eliminate the residual arc energy, avoid the substrate arcing, and ensure the high precision film layer.
Main specifications
Model |
BiasBipolar-60100 |
Input parameters: |
|
Input voltage |
3x380Vac±10% + PE |
Enter the frequency |
47-60Hz |
Power supply power |
60KW |
Output parameters: |
|
Working mode |
Constant voltage V 1V stepping |
Output current Max |
At 100 A duty cycle maximum |
Output voltage Max |
-100-800V continuously adjustable |
Output frequency |
0-60KHZ (0 DC mode) |
Duty cycle |
20-90% |
Ignition voltage Max |
≥1000V |
ARC quenching time |
<0.3µs |
Arc-suppression DI/DT regulation |
5%-95% |
Arc energy |
<0.3mJ/kW |
Output mode |
DC and single stage pulse |
Output waveform |
Square wave |
The panel shows |
3.1 inch OLED screen |
Display resolution |
1V/1A/1W |
Output accuracy |
< ± 0.3%, set value comparison |
Communication interface: |
|
Analog interface (standard configuration) |
DB25 0-10VDC |
RS-485 interface (standard) |
Modbus-RTU DB 9 Male Pin1A 2B |
DP communication interface (optional) |
ProfiBus DB9 Male Pin3A 8B 5GND |
Interlock interface |
DB25 Male (Pin2 and 5 Closed) |
Power supply interface of cooling water solenoid valve |
GX-12 2-core male 24VDC |
Other Specifications |
|
Input cable wiring RVV |
≥35mm² |
Output cable wiring |
≥ 35mm ² shielded wire withstanding 1 KV |
Grounding |
10 mm (green/yellow) |
Cooling water pipe size φ16 mm metric quick coupling |
φ16mm (outer diameter) * φ12mm (inner diameter) |
Power supply size mm |
7U 19 311Hx440Wx628D |
Net weight |
78 kg |
Cooling method |
Water cooling + auxiliary air cooling |
