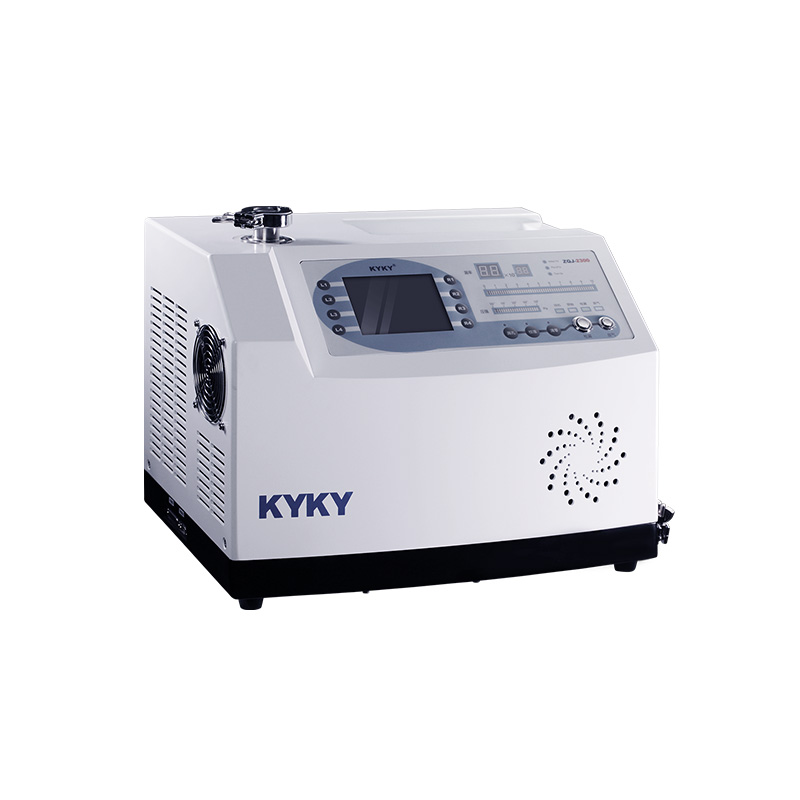

ZQJ-2300 Helium Leak Detector
ZQJ-2300 helium mass leak detector is a high-performance helium mass spectrometry leak detection equipment. It has the characteristics of small size, light weight, high reliability and superior performance. It is suitable for many industrial and scientific research fields.
Product Features
Easy to use:
Small size and lightweight for easy movement and operation.
Built-in side draw interface function, supports RS232 and external control IO interfaces to meet the needs of different industries.
High reliability:
With quick vacuum protection function to prevent instrument damage.
The new yttrium oxide filament is adopted to prolong the service life of the instrument and reduce the maintenance cost.
Superior performance:
Rapid background removal capability to ensure detection accuracy.
Stable sensitivity index, the minimum leak detectable rate reaches 2.0 × 10-11 Pa·m³/s.
Application Fields
Industrial Field:
Vacuum manufacturing, low-temperature refrigeration, automobile manufacturing, electronic components, lithium batteries, high-voltage electrical, LNG, valves and other industries.
Scientific research areas:
Military industry, aerospace, nuclear industry, integrated circuits, optoelectronic communications, new energy and other fields.

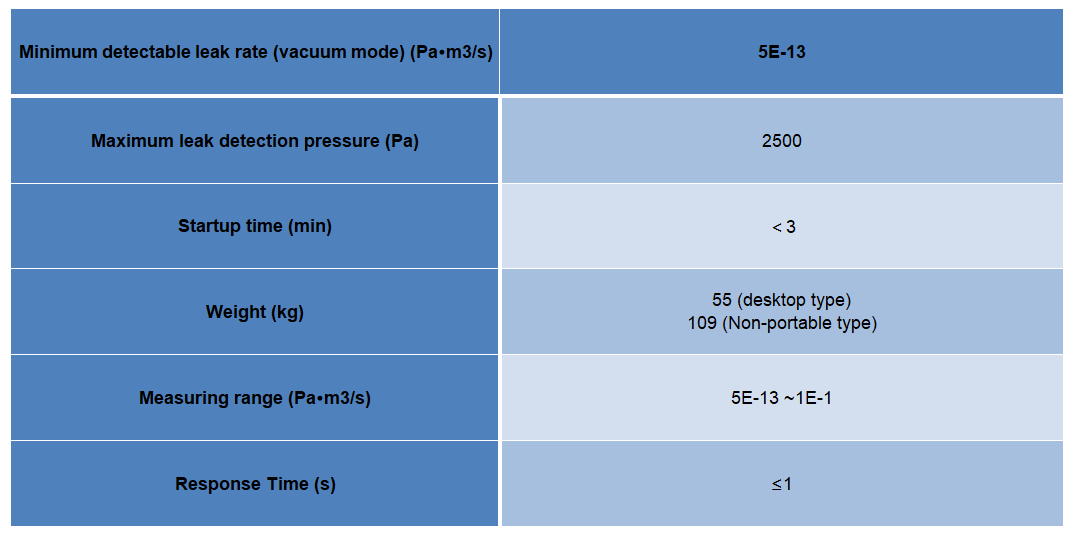

Techanical Specifications:
Dimensions:

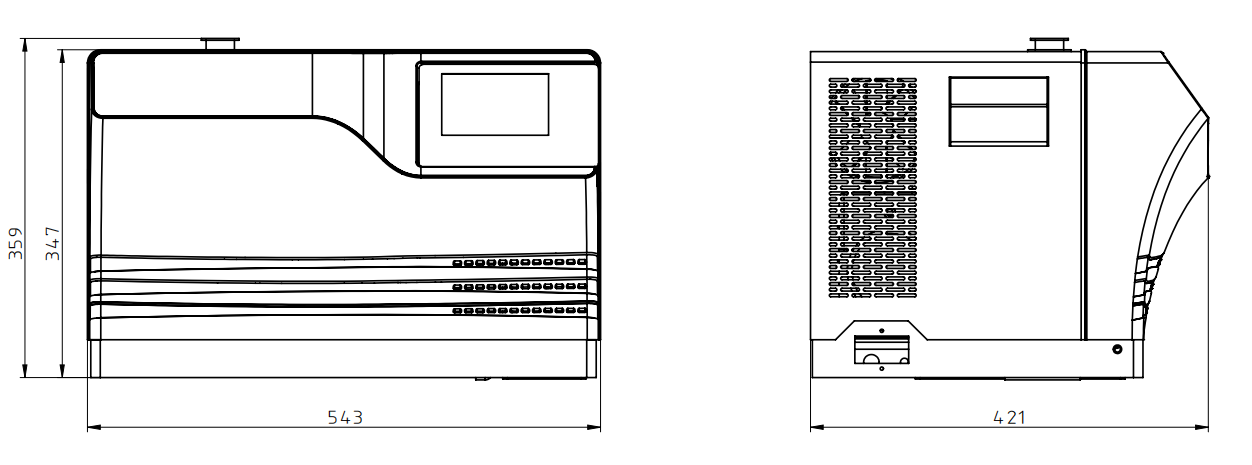

Desktop type:

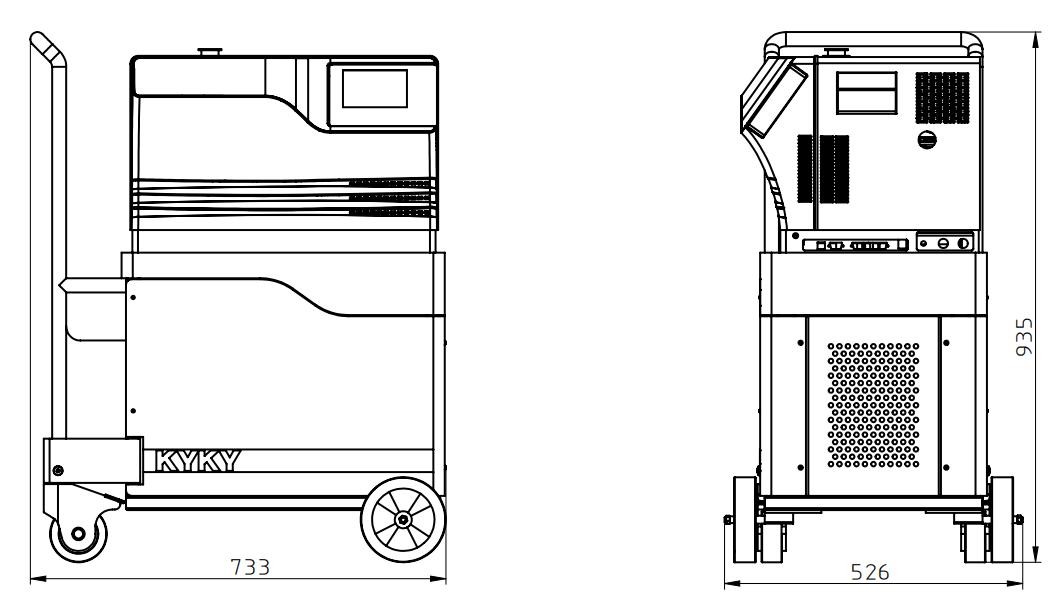

Non-Portable Type:
