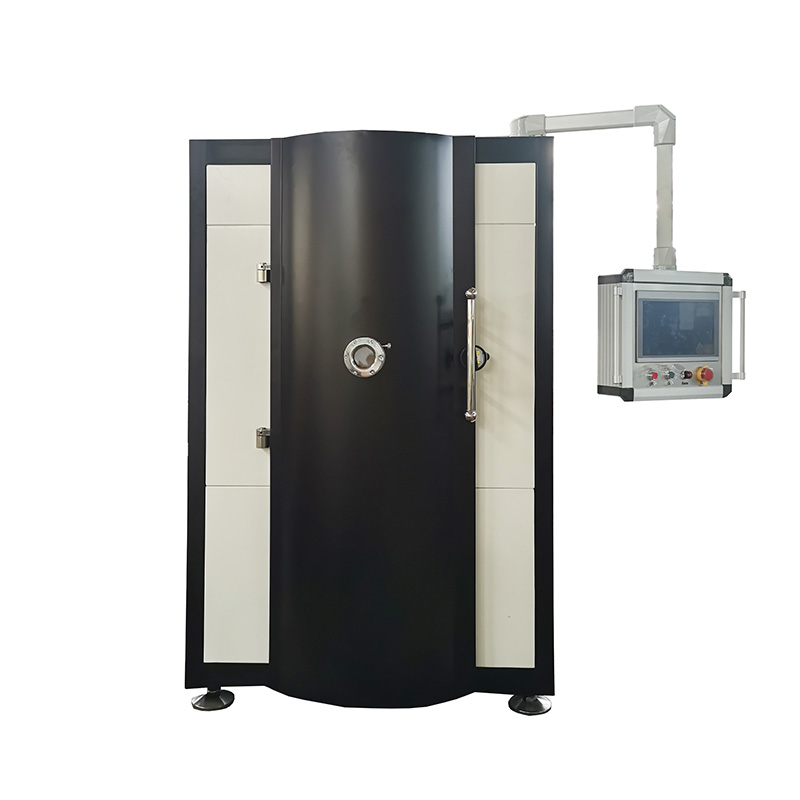

Hard Coating PVD Coating Equipment for Tools and Molds

Maximize Tool Life, Performance, and Productivity with Advanced PVD Hard Coatings

In today's competitive manufacturing landscape, the durability and performance of your cutting tools, molds, and wear parts are critical to your bottom line. Our state-of-the-art Hard Coating PVD Coating Equipment is engineered to significantly extend the service life of your most valuable tooling assets, providing a substantial return on investment through reduced downtime, lower replacement costs, and improved part quality.

What is Hard Coating PVD Coating for Tools and Molds?

Physical Vapor Deposition (PVD) is a vacuum coating process that applies a thin, ultra-hard, and wear-resistant ceramic layer onto the surface of tools, molds, and components. Unlike traditional methods, PVD is a line-of-sight process performed at relatively low temperatures (typically 200-500°C), which preserves the temper and hardness of the underlying tool steel.

Our specialized PVD coating machines are designed to deposit a range of high-performance coatings that dramatically improve surface properties without compromising the part's dimensional integrity.

Key Benefits of Our PVD Tool Coating Equipment

  • Dramatically Increased Hardness & Wear Resistance: Achieve surface hardness up to 3000+ HV, drastically reducing abrasive wear, galling, and material adhesion.

  • Significantly Extended Service Life: Expect a 300% to 800% increase in the operational life of your cutting tools, injection molds, stamping dies, and forming tools.

  • Enhanced Lubricity & Reduced Friction: Coatings like CrN and DLC provide a low coefficient of friction, minimizing heat buildup and preventing material pickup (e.g., aluminum sticking to molds).

  • Superior Corrosion & Oxidation Resistance: Protect your tooling from coolants, harsh processing environments, and high-temperature oxidation.

  • Improved Surface Quality on Finished Parts: Experience fewer rejects with better surface finish on molded or stamped components due to reduced wear and improved release properties.

Our Advanced PVD Coating Technologies

Hongfeng VAC offers a range of PVD technologies to match your specific application needs:

  • Cathodic Arc Evaporation: Ideal for achieving excellent adhesion and dense, high-hardness coatings like TiN, TiAlN, and AlCrN.

  • Unbalanced Magnetron Sputtering (UBMS): Produces extremely smooth, uniform, and defect-free coatings perfect for precision tools and applications requiring a fine surface finish.

  • Hybrid Arc-Sputtering Systems: Combines the superior adhesion of Arc with the smoothness of Sputtering for the ultimate coating performance.

Common Hard Coatings Applied by Our PVD Systems

Our equipment is precisely calibrated to deposit a wide array of industry-standard and proprietary coatings:

  • Titanium Nitride (TiN): The classic gold-colored coating offering excellent wear resistance.

  • Titanium Aluminum Nitride (TiAlN or AlTiN): A high-performance coating for high-temperature applications like dry machining.

  • Chromium Nitride (CrN): Outstanding for corrosion resistance and non-stick properties, ideal for plastic injection molds and aluminum die-casting.

  • Diamond-Like Carbon (DLC): Provides extreme hardness and a very low friction coefficient, excellent for wear parts and specific cutting applications.

  • Custom Coatings: We can develop tailored coating solutions to meet your unique operational challenges.

Industries and Applications Served

Our hard coating PVD systems are essential for a wide range of industries:

  • Metal Cutting: End mills, drills, inserts, taps, and reamers.

  • Mold & Die: Plastic injection molds, die-casting dies, stamping dies, and extrusion tools.

  • Precision Manufacturing: Gears, bearings, surgical instruments, and automotive components.

  • Forming Tools: Punches, dies, and rolls for sheet metal forming.

Why Choose Our PVD Coating Equipment?

  • Robust & Reliable Design: Built for 24/7 industrial operation with minimal maintenance.

  • High Coating Uniformity: Advanced process control ensures consistent, repeatable results batch after batch.

  • User-Friendly Software: Intuitive HMI allows for easy recipe management and process monitoring.

  • Comprehensive Support: From installation and training to ongoing technical service and spare parts.

  • Scalable Solutions: We offer systems in various sizes, from R&D and job shop models to large-scale, high-volume production machines.

FAQ: Hard Coating PVD Coating Equipment

Q: What is the typical coating thickness for tools and molds?
A: Coating thickness typically ranges from 1 to 5 microns, which is thin enough not to alter part dimensions but thick enough to provide significant performance benefits.

Q: Can PVD coating be applied to any tool steel?
A: PVD is suitable for most hardened tool steels (e.g., H13, D2, M2) and carbide substrates. The tool must be properly heat-treated and polished before coating.

Q: How does PVD differ from CVD (Chemical Vapor Deposition)?
A: PVD operates at much lower temperatures (200-500°C vs. 800-1000°C for CVD), making it safe for most tool steels without risk of tempering back. PVD coatings are also typically in compressive stress, making them excellent for sharp cutting edges.

Q: What is the lead time for coating a set of tools?
A: A typical coating cycle, including loading, pump-down, coating, and cool-down, takes between 8 to 24 hours, depending on the coating type and part geometry.

Contact our engineering team today for a free consultation. Let us help you select the perfect hard coating PVD coating equipment to maximize your productivity and profitability.
