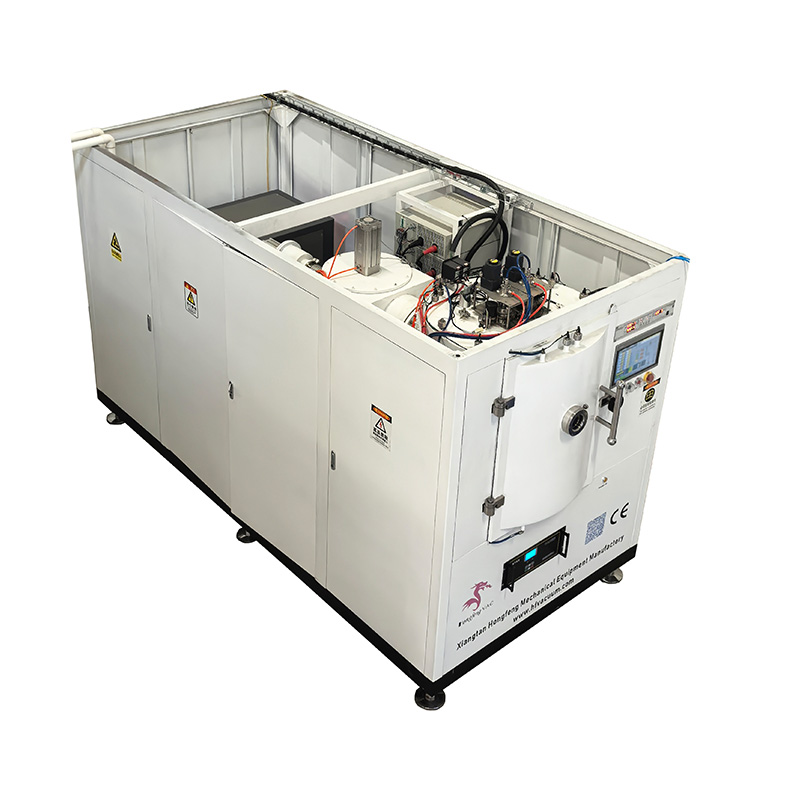

PVD Multi-Arc Ion Plating Equipment: High-Performance Coating Solution for Industrial & Medical Applications
Are you seeking a reliable physical vapor deposition (PVD) solution to enhance product durability, functionality, and aesthetic appeal? Our PVD multi-arc ion plating equipment integrates advanced vacuum coating technology, delivering superior film adhesion, uniform deposition, and versatile performance across diverse industries. Designed for batch production and small-batch customization, this equipment is the ultimate choice for decorative coating, hard protective film deposition, and functional surface modification.
Working Principle
Operating under high-vacuum conditions, our multi-arc ion plating machine utilizes self-sustaining arc discharge between the cathode target (titanium, chromium, zirconium, or alloy materials) and anode . High current density generates localized Joule heat, causing explosive plasmaization of target materials. Metal ions are accelerated toward the substrate surface via electric field force, reacting with process gases (Ar, N₂, O₂, C₂H₂) to form high-quality compound coatings . The combination of plasma bombardment and precise parameter control ensures exceptional film density, adhesion, and resistance to wear, corrosion, and oxidation .
Key Features & Technical Advantages
- Efficient Coating Performance: Equipped with 2-10 arc cathodes (customizable), enabling rapid deposition and high batch turnover efficiency . Optional DC/MF sputtering cathodes expand coating material compatibility.
- Precision Control System: PLC + touchscreen/IPC automation allows real-time adjustment of vacuum level, arc current (30-200A), gas flow, substrate temperature, and bias voltage . Multi-channel gas mass flow controllers (MFC) support flexible gas mixing (3-1 or 2-2 channels) for custom film properties .
- Superior Film Quality: Upgraded arc cathodes minimize droplet formation, resulting in smooth, dense coatings with ultra-high oxidation resistance and red hardness . Planetary workpiece holders with 1-20 rpm rotation ensure uniform film thickness on complex-shaped parts .
- Safety & Reliability: Integrated water-electricity separation design, multi-level interlock protection, and CE-certified electrical cabinets guarantee operator safety and equipment stability . Cooling circulation systems prevent overheating during long-term operation .
- Space-Saving & Cost-Effective: Compact footprint (e.g., L3000W3000H2000mm for RTAC1000 model) suits small-to-large production facilities . Low energy consumption (average 30KW) and minimal waste reduce operational costs .
Technical Specifications (Standard Model)
|
Parameter |
Specification |
|
Vacuum Chamber |
Stainless Steel (S304), vertical front-loading, Φ1000*H1000mm (customizable) |
|
Ultimate Vacuum |
5×10-4Pa, achieved in 30 minutes via turbo-molecular/rotary vane pumps |
|
Target Materials |
Ti, Cr, Zr, Cu, Ni, TiAl, and alloys |
|
Coating Types |
TiN, TiC, TiCN, TiAlN, CrN, DLC (diamond-like carbon), Al₂O₃, and decorative films (IP black, rose gold, sapphire blue) |
|
Power Supply |
380V/3Ph/50HZ, max 75KW |
|
Heating System |
PID infrared heaters for substrate preheating (reduces film stress) |
Wide-Ranging Industrial Applications
Our PVD multi-arc ion plating equipment serves diverse sectors with tailored coating solutions:
- Medical Industry: Surgical instruments (scalpels, forceps) with TiN/DLC coatings for enhanced wear resistance and biocompatibility; dental tools with antibacterial films; artificial joints/heart stents with anti-coagulant and bone-integration-promoting coatings (e.g., HA) .
- Automotive & Aerospace: Engine parts, gears, and aerospace components with CrN/TiAlN coatings for friction reduction and durability .
- Decorative & Hardware: Watch cases, jewelry, door handles, and tableware with scratch-proof, colorful decorative films (rose gold, gun black, champagne gold) .
- Tools & Moulds: Cutting tools, stamping dies, and injection moulds with hard DLC coatings to extend service life .
- Electronics: Mobile phone cases, semiconductor components, and connectors with corrosion-resistant and conductive coatings .
Why Choose Our PVD Coating Equipment?
- Customization Capability: Tailor chamber size, cathode quantity, and process modules to meet specific industry needs .
- Comprehensive Support: Professional technical training, coating optimization, and after-sales service ensure seamless integration into your production line .
- Eco-Friendly Technology: Pollution-free physical vapor deposition process complies with global environmental standards .
Elevate your product performance with our state-of-the-art PVD multi-arc ion plating equipment. Contact us today for a customized quote and technical consultation!
