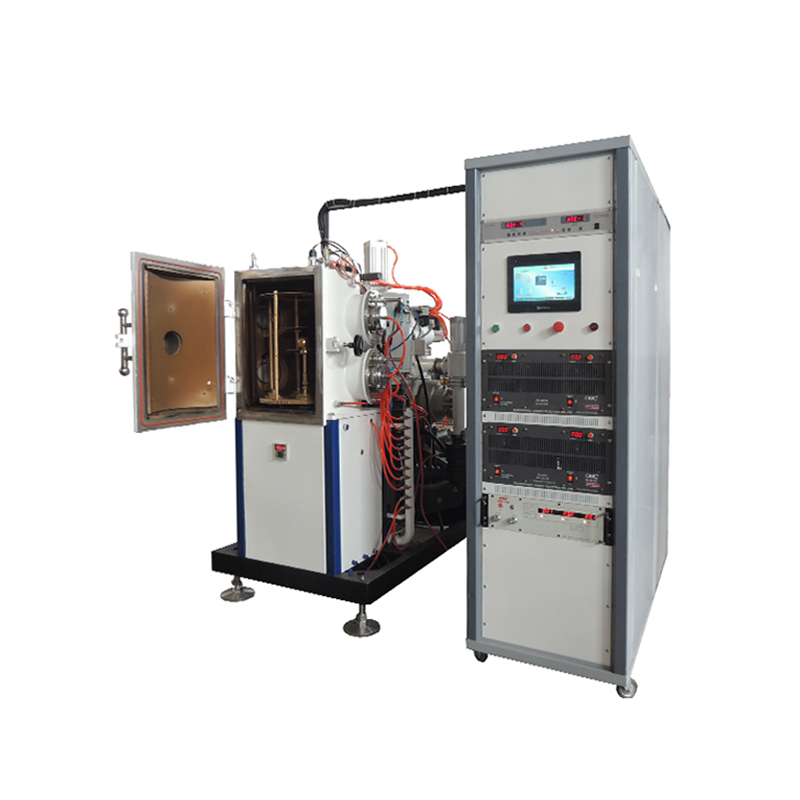

Vacuum PVD Coating Equipment for Drill Bits

Physical Vapor Deposition (PVD) coating equipment is a sophisticated industrial system used to apply ultra-thin, super-hard ceramic or metal coatings onto the surface of tools, specifically drill bits. This process significantly enhances the drill bit's performance, durability, and lifespan by reducing friction, increasing hardness, and improving wear and heat resistance. PVD coating equipment is a critical technology in modern manufacturing, enabling the production of advanced, high-performance drill bits. By depositing micron-thin layers of ultra-hard materials, this equipment drastically improves the economics of drilling operations through extended tool life, reduced downtime, and enhanced machining capabilities. The precise engineering and controlled environment of the PVD system are fundamental to achieving the consistent, high-quality results demanded by the metalworking and construction industries.

Purpose and Benefits for Drill Bits

Applying a PVD coating to drill bits transforms them from standard tools into high-performance instruments. The key benefits include:

  • Enhanced Hardness: Increases surface hardness, reducing edge chipping and wear.

  • Improved Wear Resistance: Extends tool life by 3 to 5 times (or more) compared to uncoated drill bits.

  • Reduced Friction & Heat Generation: The low coefficient of friction allows for smoother chip flow, lower cutting forces, and less heat buildup in the workpiece and the tool.

  • Higher Speeds and Feeds: Enables more aggressive machining parameters, leading to increased productivity.

  • Corrosion Resistance: Protects the drill bit from oxidation and corrosion.

  • Maintained Sharpness: The thin coating does not blunt the sharp cutting edge, preserving the bit's geometry.

Main Parts of the PVD Equipment

A typical PVD coating system for drill bits consists of several integrated components:

  1. Vacuum Chamber: The core of the system, a sealed, robust chamber where the coating process occurs. It is evacuated to a high vacuum to create a clean, contamination-free environment.

  2. Pumping System: A combination of roughing and high-vacuum pumps (e.g., turbomolecular pumps) that removes air and moisture from the chamber to achieve the necessary low-pressure environment (typically 10⁻³ to 10⁻⁶ mbar).

  3. Plasma Generation System: Includes a power supply (DC, DC-pulsed, or MF/HiPIMS) and electrodes to ionize the inert gas (usually Argon) inside the chamber, creating a plasma.

  4. Vaporization Source (Cathodic Arc or Magnetron Sputtering), we can choose one of them or both:

    • Cathodic Arc Evaporation: Uses a high-current arc to vaporize the solid target material (e.g., Titanium, Chromium) from a "target" cathode, creating a highly ionized plasma cloud.

    • Magnetron Sputtering: Uses a magnetic field to confine a plasma near the target. Ions from the plasma bombard the target, "sputtering" atoms off its surface. This method produces a smoother, more uniform coating.

  5. Gas Distribution System: Precisely controls the flow of reactive gases (such as Nitrogen - N₂, Acetylene - C₂H₂, or Oxygen - O₂) into the chamber. These gases react with the vaporized metal to form the desired coating compound (e.g., TiN, TiAlN, AlCrN).

  6. Fixturing and Rotation System: Specialized racks and jigs that hold the drill bits. A rotation mechanism ensures all surfaces of the complex drill bit geometry are evenly exposed to the vapor stream for a uniform coating thickness.

  7. Heating System: Heating elements bring the drill bits and the chamber to a specific temperature (typically 200°C - 500°C), which is critical for achieving proper coating adhesion and microstructure.

  8. Control System: A computerized PLC or touch-screen interface that automates and monitors the entire process, including pressure, temperature, gas flows, and timing, ensuring repeatability and quality.

Coating Process: A Step-by-Step

The operation of the PVD coating equipment follows a precise sequence:

  1. Cleaning and Loading: Drill bits are meticulously cleaned to remove any oils, coolants, or oxides. They are then loaded onto the fixtures inside the chamber.

  2. Vacuum Pumping: The chamber door is closed, and the pumping system evacuates the air to create a high vacuum.

  3. Heating and Plasma Etching: The chamber and parts are heated. An Argon plasma is ignited, and the ions bombard the surface of the drill bits, performing a final "sputter cleaning" to remove any residual contaminants and activate the surface.

  4. Deposition Phase:

    • The vaporization source (arc or sputter) is activated, vaporizing the target material.

    • Reactive gases are introduced into the chamber.

    • The vaporized metal atoms react with the gases to form a compound (e.g., Ti + N₂ → TiN).

    • These compound molecules condense and nucleate on the clean, heated surface of the drill bits, building up a thin, adherent coating layer.

    • The rotation system ensures uniform coverage on the flutes, margins, and cutting edges.

  5. Cooling and Unloading: After the deposition cycle is complete, the system is allowed to cool under vacuum or controlled atmosphere. Once at a safe temperature, the chamber is vented, and the coated drill bits are unloaded.

Common Coating Materials for Drill Bits

  • TiN (Titanium Nitride): Gold color. General-purpose, good wear resistance.

  • TiAlN (Titanium Aluminum Nitride): Purple-bronze color. Excellent for high-temperature applications due to the formation of a protective aluminum oxide layer.

  • AlCrN (Aluminum Chromium Nitride): Dark gray. Superior hardness, oxidation resistance, and performance in dry or high-speed machining.

  • TiCN (Titanium Carbo-Nitride): Gray-blue. Higher hardness and lubricity than TiN, excellent for abrasive materials.
