Magnetron Sputtering Cathode: In-Depth Guide to Principles, Design & Applications

A magnetron sputtering cathode is the heart of a magnetron sputtering system, a advanced Physical Vapor Deposition (PVD) technology. It is a precisely engineered target assembly that generates a high-density plasma to enable efficient, high-quality thin-film coating of materials onto various substrates. This component is critical for achieving uniform, adherent, and pure films in industries ranging from microelectronics to decorative coatings.

The process occurs inside a vacuum chamber filled with an inert gas (usually Argon). When a high negative voltage is applied to the cathode, it ignites a plasma. Free electrons emitted from the target surface are trapped near it by the magnetic field, dramatically increasing their path length. This "confinement" leads to a much higher rate of ionization events between electrons and argon gas atoms.

The resulting positive argon ions are then accelerated violently toward the negatively charged target, striking it with enough energy to eject (sputter) atoms from the target material. These ejected atoms travel in a line-of-sight manner and condense as a thin film on the substrate placed opposite the cathode. The magnetic field's shape and strength are crucial, as they define the "racetrack" erosion pattern on the target and control the plasma density.

The magnetron sputtering cathode is a sophisticated and enabling technology that drives high-performance thin-film deposition across countless advanced industries. Its ability to combine high deposition rates with exceptional film quality and material versatility makes it a cornerstone of modern vacuum coating processes. When selecting a cathode, factors such as target material, desired film properties, production scale, and total cost of ownership must be carefully considered to optimize the coating process.

Components & How It Works

The magnetron sputtering cathode integrates several key elements to function:

  1. Target Material: The solid source material (e.g., copper, titanium, silicon, ITO) to be deposited. It is bonded to the cathode body and serves as the "sputtering source."

  2. Permanent Magnets: An array of magnets (typically strong rare-earth magnets like NdFeB) placed behind the target. They create a closed-loop magnetic field parallel to the target surface.

  3. Cooling System: A water-cooled backing plate or chamber to dissipate the intense heat generated during the sputtering process, preventing target melting.

  4. Cathode Body: The structural housing that holds the assembly, includes electrical insulation, and facilitates connection to the power supply.

Advantages of Magnetron Sputtering Cathodes

  • High Deposition Rates: Electron confinement creates dense plasma, enabling faster sputtering compared to conventional methods.

  • Low Substrate Heating: The process is more energy-efficient, as electron energy is focused near the target, minimizing thermal stress on sensitive substrates.

  • Excellent Film Quality: Produces films with strong adhesion, high density, and good uniformity.

  • Versatility: Can deposit a vast array of materials (metals, alloys, insulators, compounds) using DC, pulsed DC, or RF power.

  • Operates at Lower Pressures: Allows for longer mean-free paths of sputtered atoms, improving film purity and step coverage.

  • High Target Utilization: Advanced cathode designs (like rotary or dual-magnet) can improve material usage from ~30% to over 80%.

Types of Magnetron Sputtering Cathodes That Hongfeng VAC Provides:

  • Planar Cathodes: The most common type, with a flat target. Simple and effective but has a characteristic racetrack erosion zone.

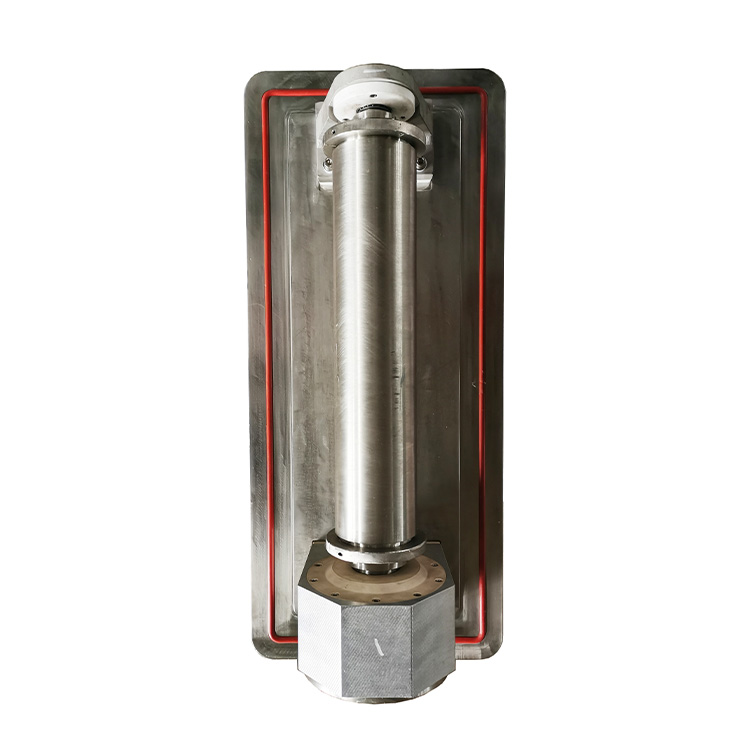

  • Rotary (Cylindrical) Cathodes: Feature a rotating cylindrical target. Offer much higher target utilization, longer operational life, and more uniform wear, ideal for reactive sputtering and large-scale production.

  • Dual Magnetron Cathodes: Use two closely spaced targets, often powered in mid-frequency AC mode. Essential for high-rate, stable reactive sputtering of dielectric materials like oxides or nitrides.

  • Unbalanced Magnetron (UBM) Cathodes: Designed to allow some magnetic field lines to extend toward the substrate, creating a denser plasma there. This enhances ion bombardment of the growing film, leading to superior density and microstructure.

Applications

Magnetron sputtering cathodes are indispensable in modern manufacturing and R&D:

  • Semiconductors & Microelectronics: Deposition of aluminum, copper, titanium, tungsten, and barrier layers (TaN, TiN) on integrated circuits.

  • Optical Coatings: Multi-layer anti-reflective, reflective, or filter coatings on lenses, displays, and architectural glass.

  • Decorative & Functional Coatings: Wear-resistant coatings on tools (TiN, CrN), decorative finishes on consumer goods, and low-friction coatings on automotive parts.

  • Flexible Electronics & Photovoltaics: Transparent conductive oxides (ITO, AZO) for touch screens, solar cells, and flexible OLEDs.

  • Tribological & Biomedical Coatings: Hard, lubricious, or biocompatible coatings (like DLC or hydroxyapatite) for medical implants and aerospace components.
